8304A VGA Serial Camera Module – RS-232, 640×480, JPEG
8304A VGA Serial Camera Module – RS-232, 640×480, JPEG
Regular price
$8.00 USD
Regular price
$10.00 USD
Sale price
$8.00 USD
Unit price
per
Contact us for bulk order pricing
Taxes included.
Couldn't load pickup availability
Product Description:

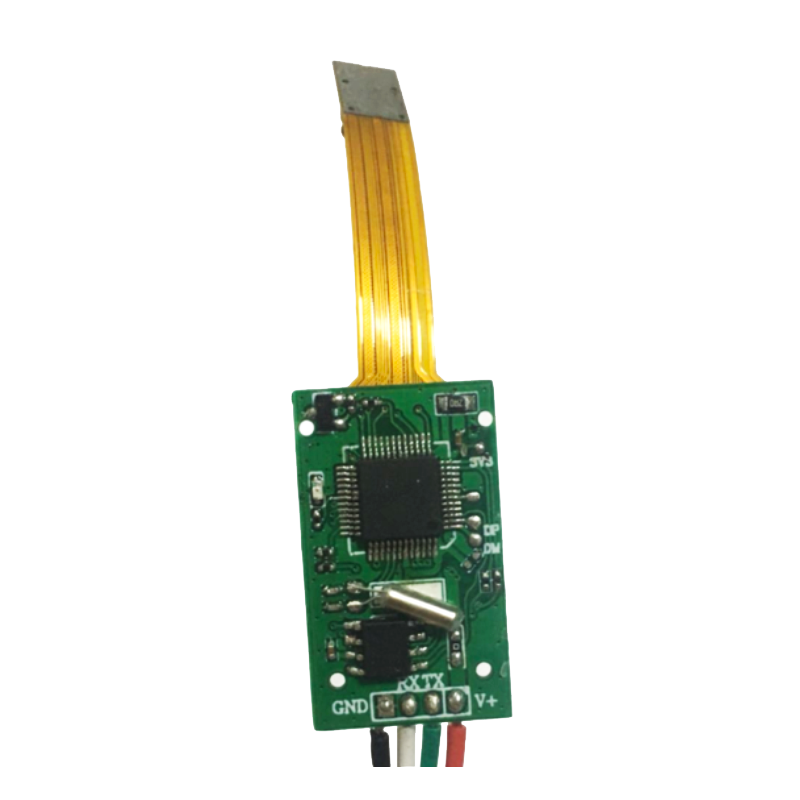

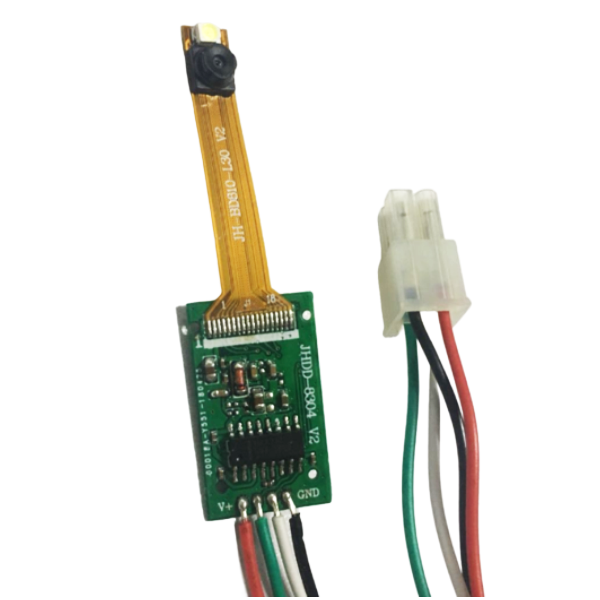

Dedicated 640×480 image capture & UART transmission board — stable serial transfer without USB, with integrated sensor, processing IC, RS-232 level shifter, and on-chip power regulation.
Built-in high-brightness white LED for low-light image capture, MOSFET-controlled from the main board for on-demand illumination — ideal for embedded applications, industrial control, and robotics.
Once an image is taken you can download the image jpg over the serial port.
Typical Applications
- Embedded systems & microcontroller projects
- Industrial inspection & automation
- Robotics vision systems
- Security & access control devices
- OEM/ODM custom camera solutions
⚙️ Specifications
| Parameter | Value | Notes |
|---|---|---|
| Resolution | 640 × 480 (0.3MP) | Built-in IR-Cut filter |
| Image Format | JPEG | Compression supported |
| Interface | RS-232 (via MAX232) | UART packet transmission |
| Baud Rate | 115200 bps | Configurable |
| Lens | 3.6 mm | Supports external IR-Cut |
| Illumination | 1× High-brightness white LED, MOSFET-controlled from main board | Optional external IR LED |
| Voltage Input | DC 5.0 V | Internal LDO to 3.3 V |
| Board Size | 17.00 × 29.00 mm | Excluding lens & connector |
| Connector | 4-pin (Tx, Rx, VCC, GND) | Cable length optional |
| Special Features | Still image only | No video stream |
💬 Need customization?
We support OEM/ODM projects – from lens selection to cable design. Contact us to discuss your requirements.
