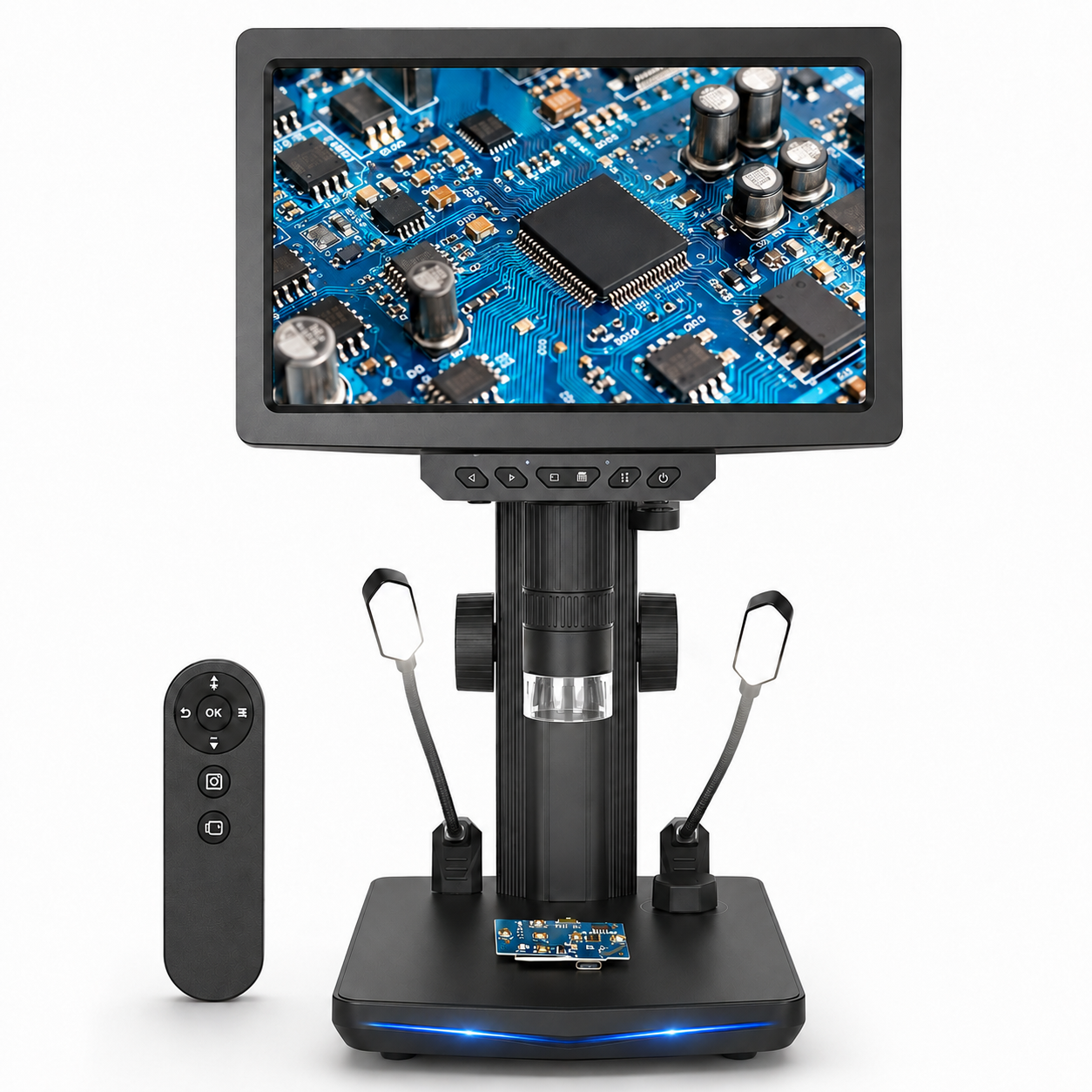

W10-A 10.1" IPS HDMI Digital Microscope for PCB Repair, Soldering & Coin Inspection
W10-A 10.1" IPS HDMI Digital Microscope for PCB Repair, Soldering & Coin Inspection
Couldn't load pickup availability

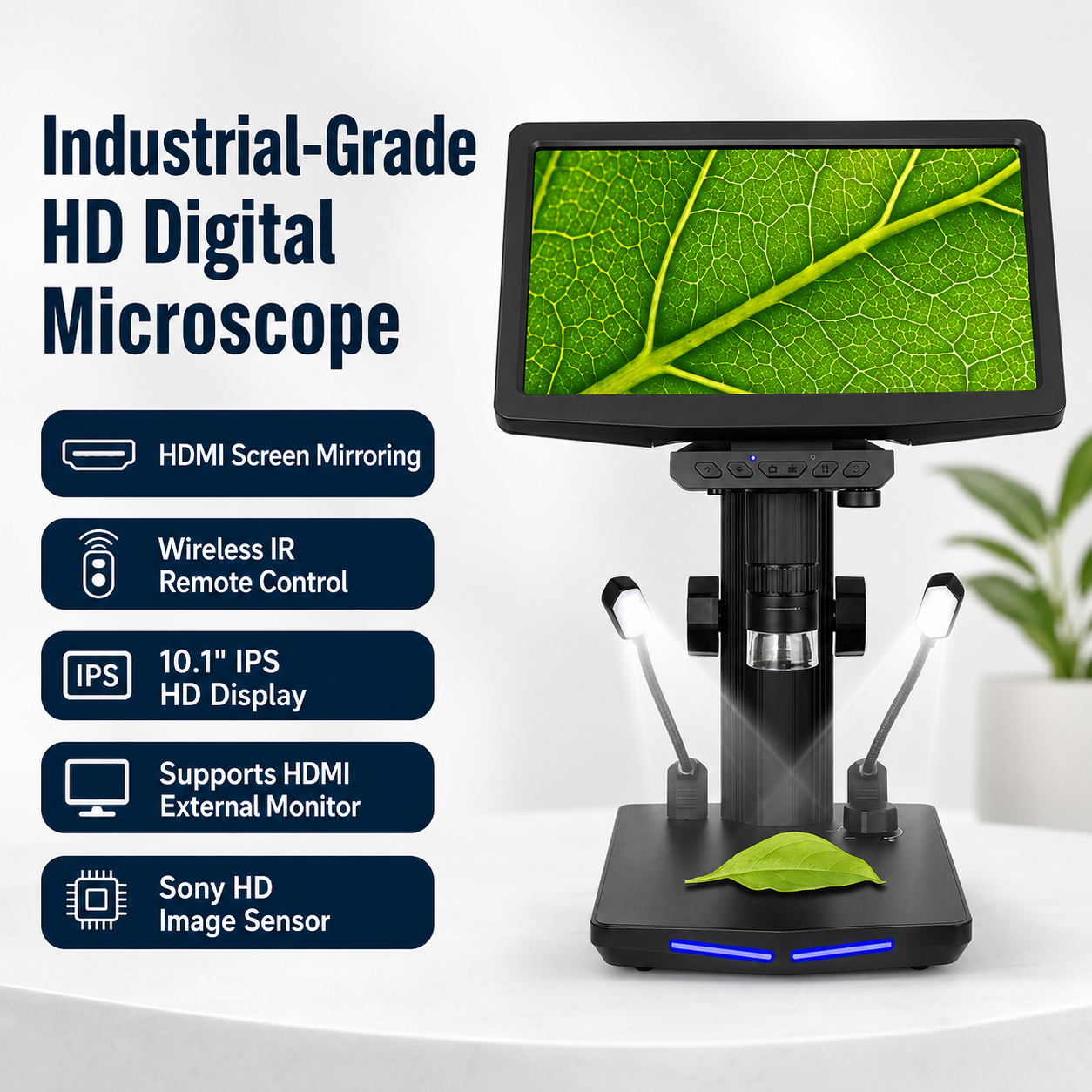

10.1" IPS Industrial Digital Microscope
Model: W10-A Series | 1600X Magnification
Watch our official hardware demonstration and setup video below to discover the professional-grade imaging clarity and structural design built for commercial technical centers.
Industrial & Commercial Applications
Mobile Phone & Electronics Repair
Provides ultra-clear magnification for micro-soldering, SMD component inspection, PCB track diagnostics, and precise hardware repair operations.

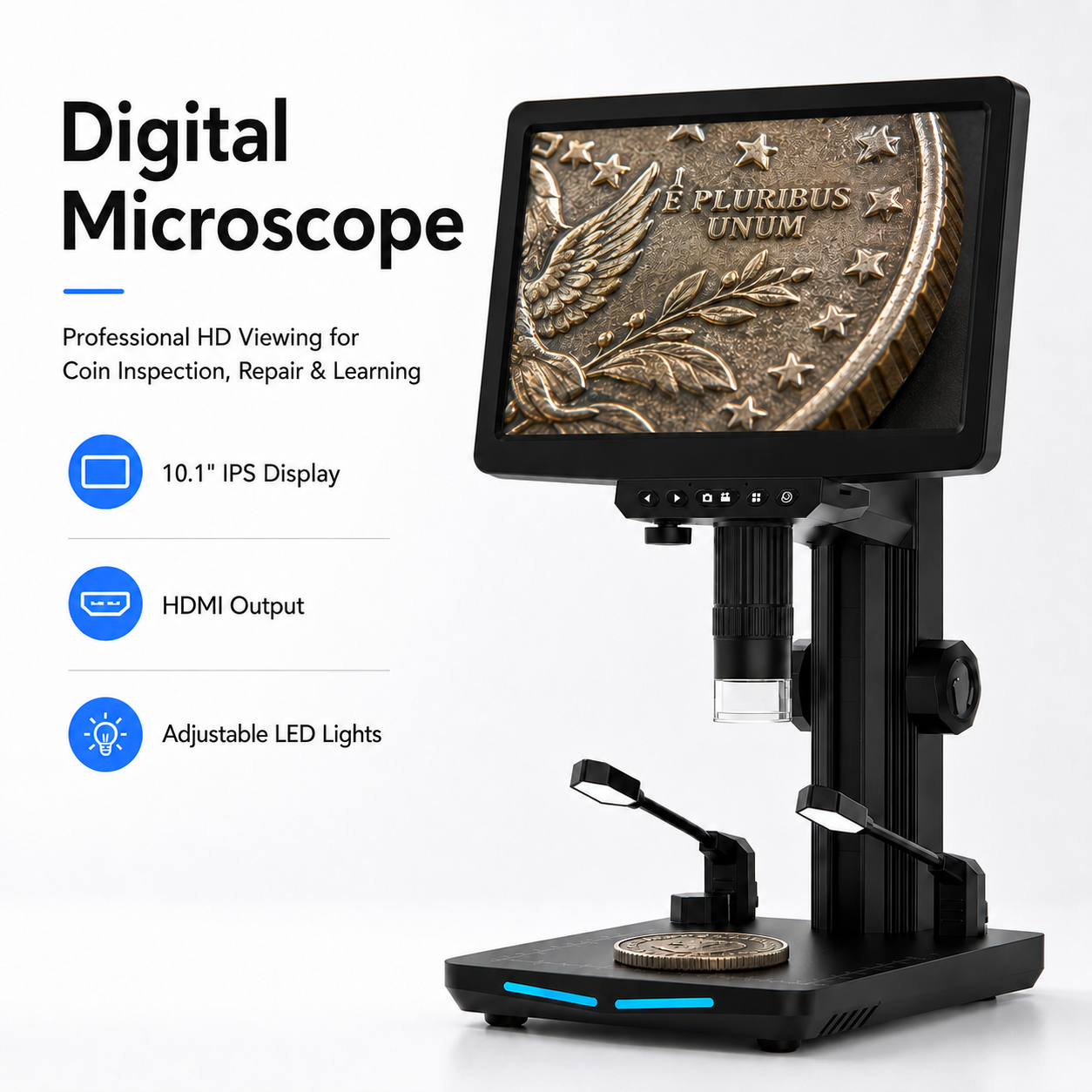

Professional Coin & Antique Inspection
Ideal for numismatists, collectors, and appraisers to analyze micro-textures, mintmarks, die cracks, and verify coin authenticity on a large 10.1" screen.
Industrial Electronics Quality Control
Streamlines assembly line quality checks, component surface inspection, solder joint checking, PCB defect inspection, and precision parts quality control.
Technical Specifications & System Architecture

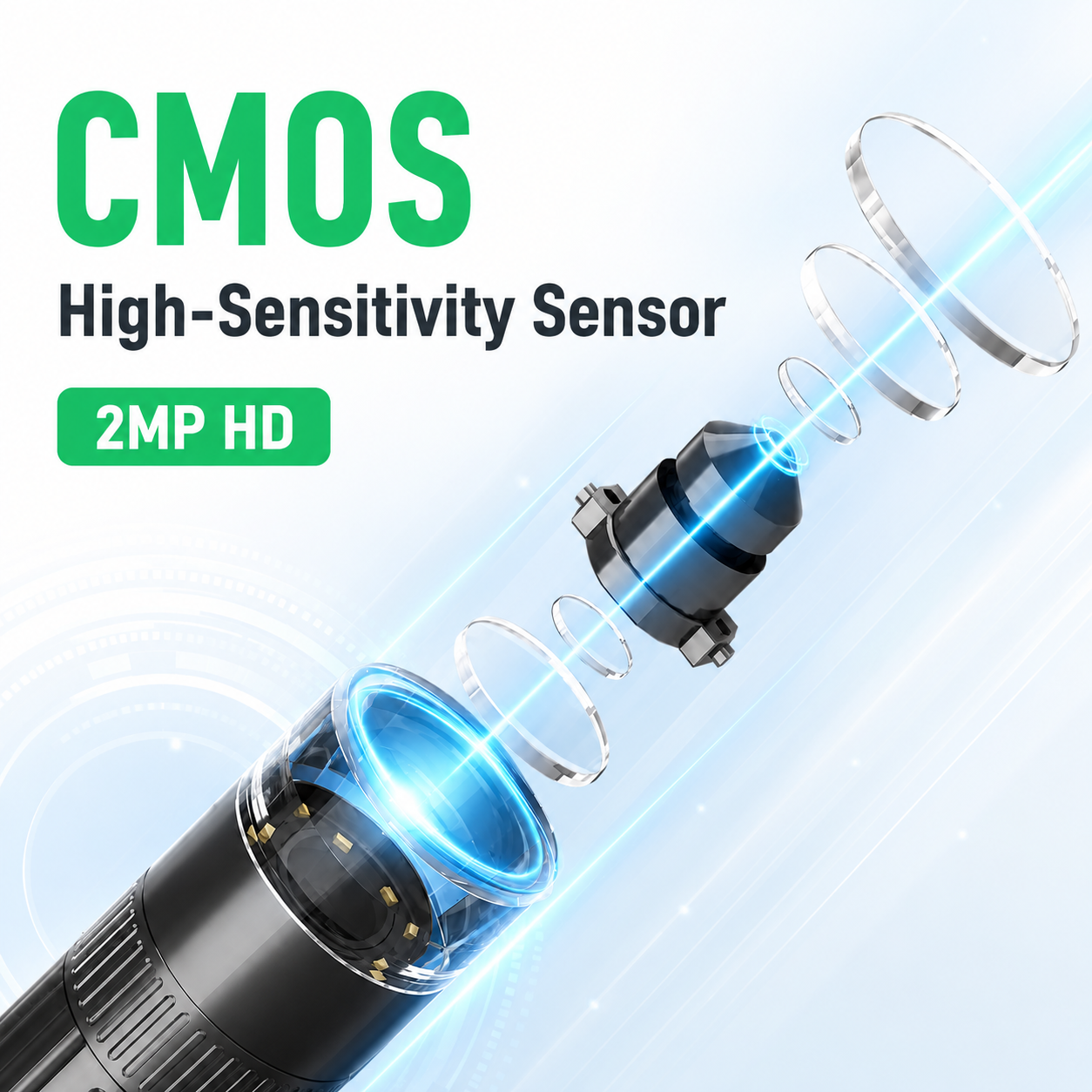

Optical & Imaging System
| Camera Resolution | 2 MP (Mega Pixels) |
| Magnification Rate | Up to 1600X |
| Focusing Mode | Manual Focus |
| Focal Range | 0 - 40 mm |
| Video Capture Res. | 720P / 1080HD |
| Image Capture Res. | 2M - 16M (Selectable) |
| Video / Photo Format | MOV / JPG |

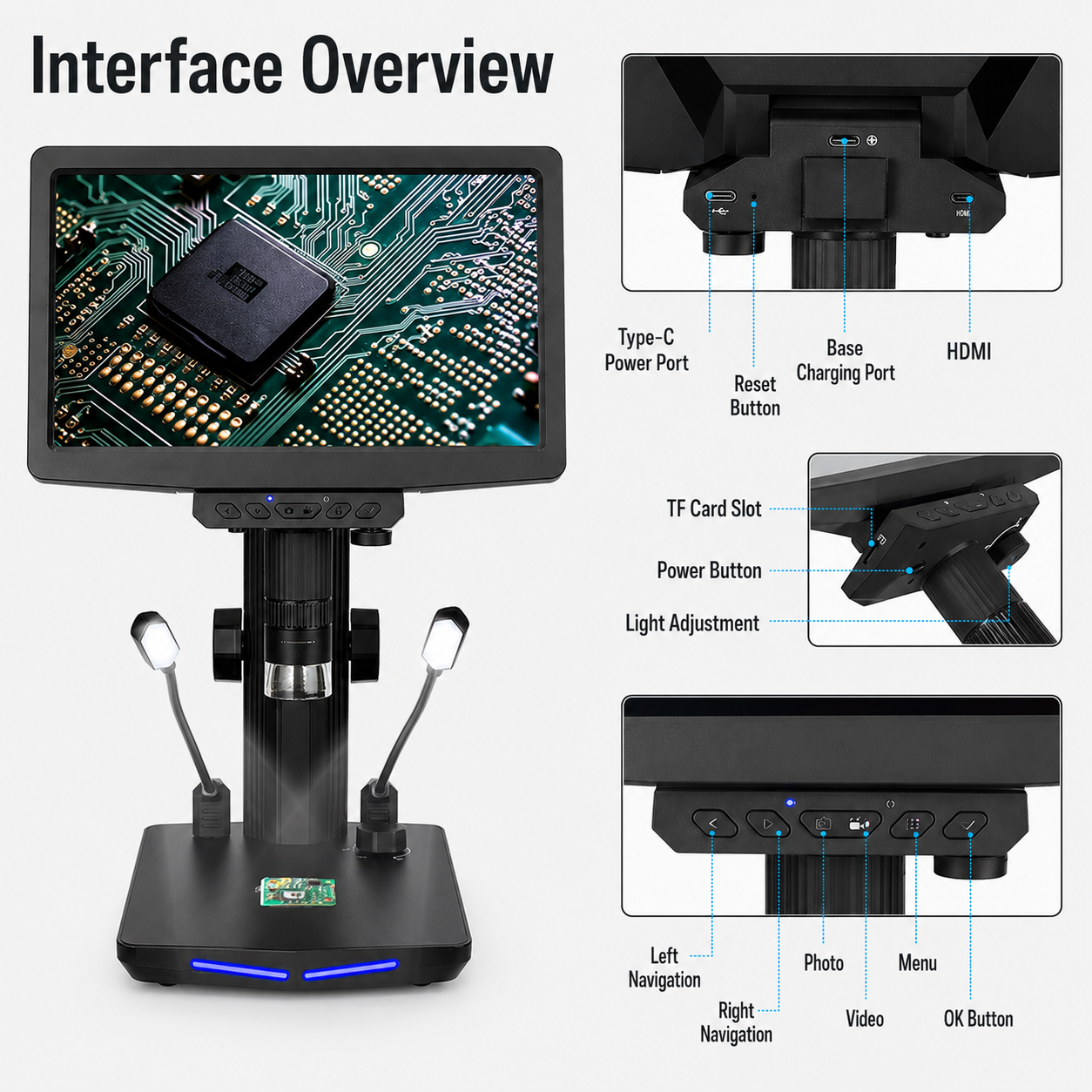

Display & Interface
| Screen Size & Type | 10.1-inch IPS Display |
| Screen Resolution | 1024 * 600P |
| Video Output Port | HDMI HD Output |
| Power Input Port | Type-C Interface |
| TF Card Storage | Supports 0-32GB (Class 10 or above high-speed card recommended) |
| Light Source | 8 High-brightness LEDs + 2 Adjustable goose-neck fill lights |
Power, Mechanical & Software
| Model Number | W10-A (Compatible with W7-A series) |
| Input Voltage/Current | 5V / 2A |
| Battery Capacity | 4000mAh Lithium Rechargeable Battery |
| Operation / Charge Time | Approx. 5 Hours / Approx. 5 Hours |
| Structural Material | Aluminum Alloy + High-strength ABS + PC |
| Operating Temp. | -10°C ~ 45°C (Main Unit & Camera) |
| OS Compatibility | Windows 7 or higher / MacOS 11.0 or higher |
| OSD Languages | English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Simplified/Traditional Chinese, Arabic |

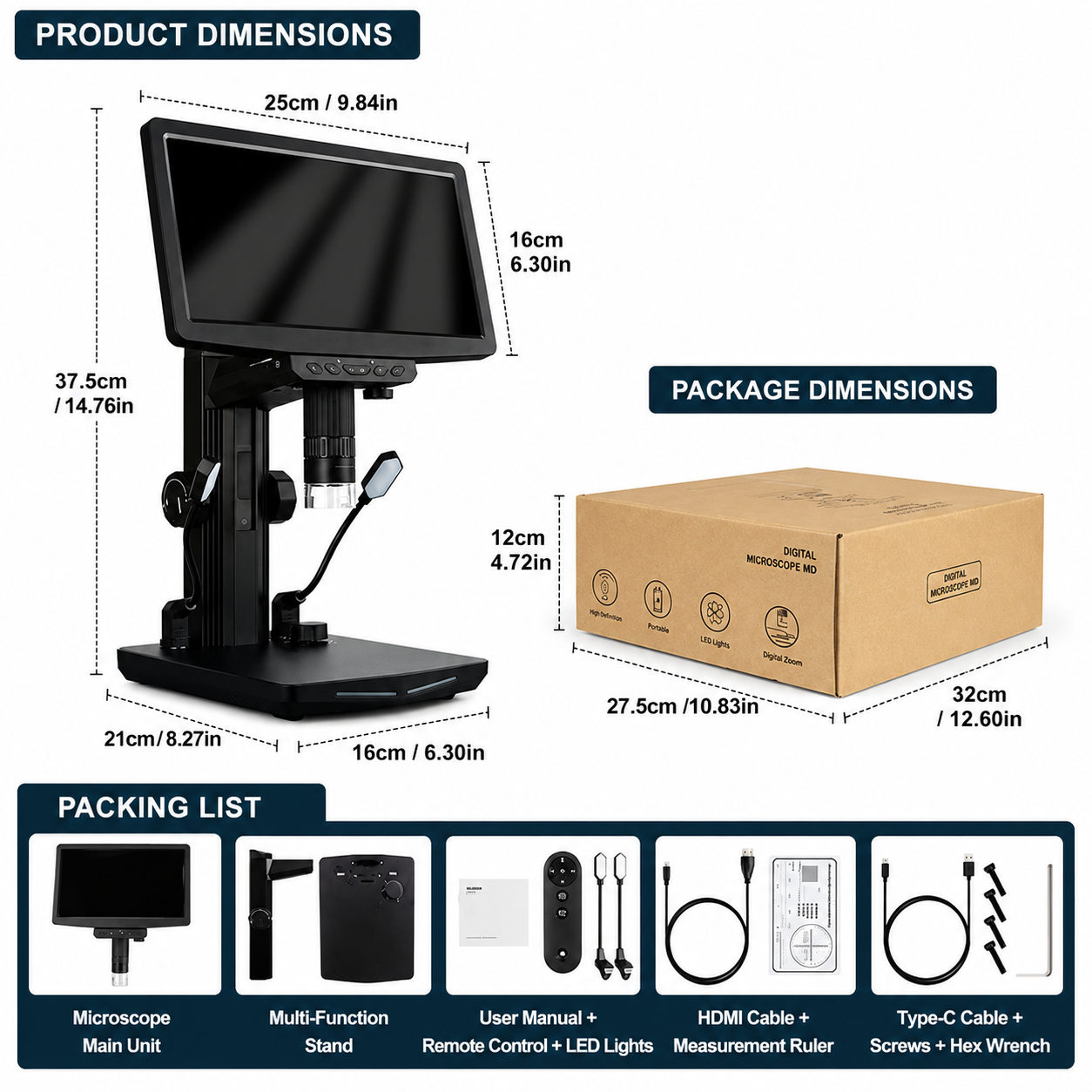

Commercial Distribution Package (Packing List)
Every package complies with standardized commercial cross-border shipment requirements, including:
- 1x Microscope Main Unit (10.1" IPS Panel)
- 1x Multi-Function Mechanical Stand & Base
- 1x Wireless Remote Control
- 2x Detachable LED Goose-neck Lights
- 1x Professional HDMI Sync Cable
- 1x High-Precision Calibration Measurement Ruler
- 1x Type-C Power/Data Cable
- 1x Assembly Tooling Set (Industrial Hex Wrench & Screws)
- 1x User Manual
