Modern electronic devices are becoming smaller, but the circuit boards inside them are becoming more complex. Tiny resistors, capacitors, connectors and solder joints are often packed into a very limited area, making many faults difficult to identify with the naked eye.

This is why digital microscopes are increasingly used in electronics repair, soldering education and mobile phone maintenance. They allow users to observe small components on a screen while keeping both hands free for tools.

Why Electronics Repair Requires Magnification

Many electronic faults are caused by defects that may be less than a millimeter wide. Common examples include:

• Cracked or incomplete solder joints
• Solder bridges between adjacent pins
• Damaged PCB tracks or solder pads
• Corrosion around connectors
• Loose, missing or misaligned components
• Dust or metal particles on a circuit board

Magnification helps technicians inspect the damaged area before beginning a repair. It is also useful after soldering, because the repaired area can be checked for bridges, loose components or insufficient solder.

How a Digital Microscope Works

A digital microscope uses a camera and magnifying lens to capture a close-up image. The image is displayed in real time on a built-in screen, computer or external monitor.

Unlike a traditional optical microscope, users do not need to keep their eyes close to an eyepiece. They can sit in a more natural position and use both hands for soldering irons, tweezers, test probes and other repair tools.

Magnification Is Not the Only Important Factor

Maximum magnification is often the first specification people notice, but it does not determine the complete working experience. For electronics repair, image clarity, working distance, lighting and display response are equally important.

Working Distance

Working distance is the space between the microscope lens and the circuit board. Sufficient space is necessary for using soldering irons and tweezers beneath the camera. Very high magnification is less useful if there is not enough room to work.

Lighting

Circuit boards contain reflective materials such as solder, metal connectors and shielding. Poor lighting may create glare or hide small cracks. Adjustable LED lighting helps users change the direction and brightness of the light, making surface defects easier to see.

Real-Time Display

The image should respond smoothly to hand movements. A noticeable delay between the operator’s actions and the screen can make precision soldering more difficult.

Digital Microscopes in Soldering Education

Digital microscopes are especially useful in technical schools and soldering courses. An instructor can display a close-up view of the working area, allowing students to clearly observe solder flow, component placement and common soldering defects.

Students can use the enlarged image to learn how to identify:

• Cold or weak solder joints
• Excess solder and solder bridges
• Incorrect component positioning
• Damaged pads and PCB tracks
• Proper use of flux and solder

HDMI video output is also valuable for teaching because the live microscope image can be shown on a larger monitor for group demonstrations.

Applications in Mobile Phone Repair

Mobile phone motherboards contain small charging-port pins, flex connectors and densely arranged components. A digital microscope can help technicians inspect liquid damage, corrosion, broken solder pads, damaged connectors and missing components.

It also supports micro-soldering by providing a clear view of the repair area while leaving enough space for precision tools.

How to Choose a Digital Microscope

When selecting a microscope for electronics repair or technical training, consider:

• Screen size and viewing comfort
• Image clarity and low display delay
• Working distance beneath the lens
• Stand stability and adjustment range
• Adjustable LED lighting
• HDMI and computer connectivity
• Battery runtime for portable use

The best microscope is not simply the model with the highest advertised magnification. It should provide a clear image, sufficient working space and a stable, comfortable repair experience.

A Practical Example

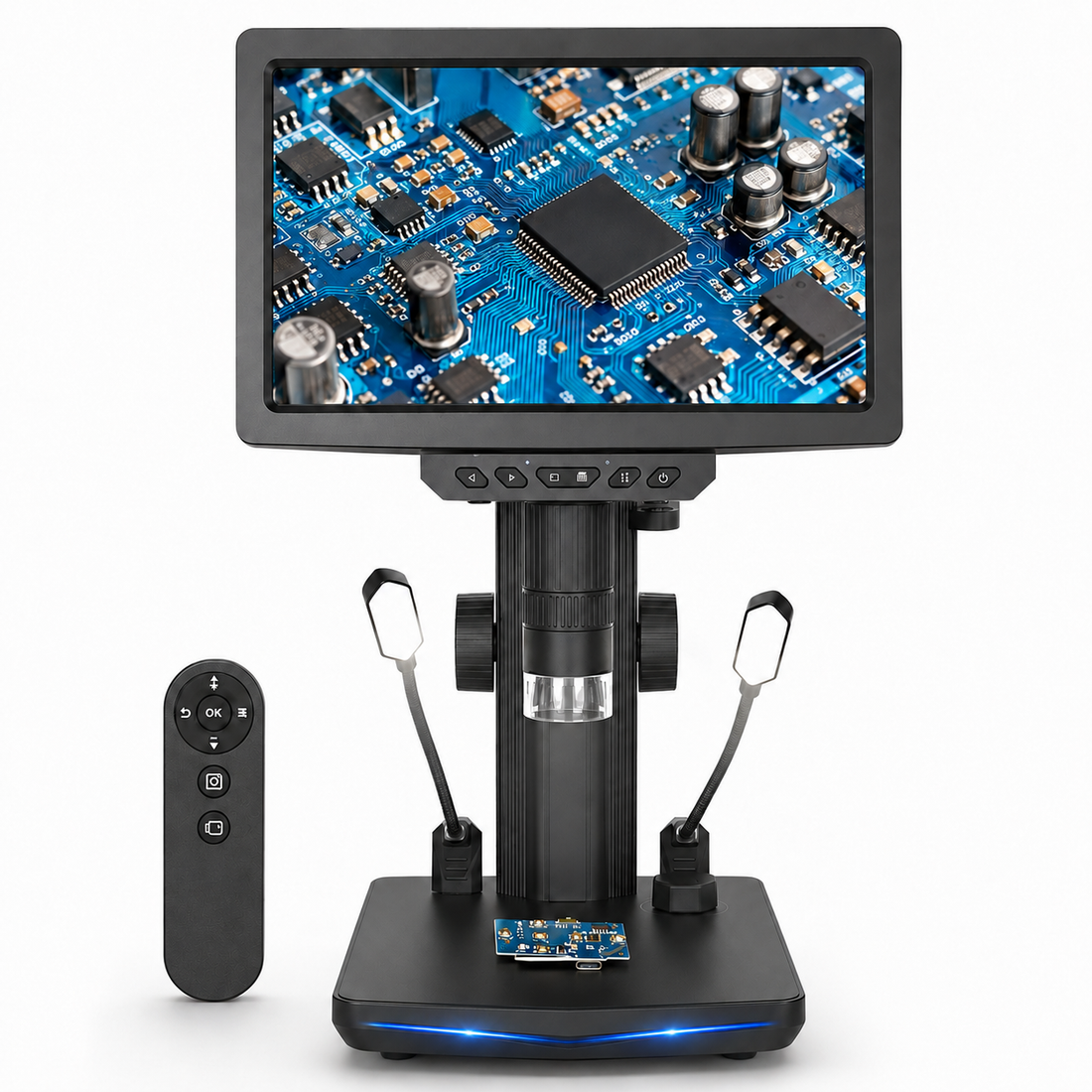

The W10-A 10.1-Inch HDMI Digital Microscope is an example of a large-screen microscope designed for electronics-related work. It supports HDMI video output and is compatible with Windows and Mac systems.

Its screen-based design makes it suitable for electronics repair benches, technical schools, soldering students and mobile phone repair shops. It can also operate continuously for up to approximately five hours, which is useful for classroom sessions and mobile workstations.

Conclusion

Digital microscopes help technicians identify small faults, improve soldering accuracy and inspect completed repairs. In education, they make detailed soldering demonstrations easier for students to understand.

Whether the microscope is used in a classroom or repair shop, practical factors such as image clarity, working distance, lighting, screen comfort and connectivity should be considered together.
