7" IPS HDMI Digital Microscope for Adults, Soldering Electron Microscope 1200X with IPS Screen

7" IPS HDMI Digital Microscope for Adults, Soldering Electron Microscope 1200X with IPS Screen

$88.00 USD
$88.00 USD
Sale Sold out
Shipping calculated at checkout.

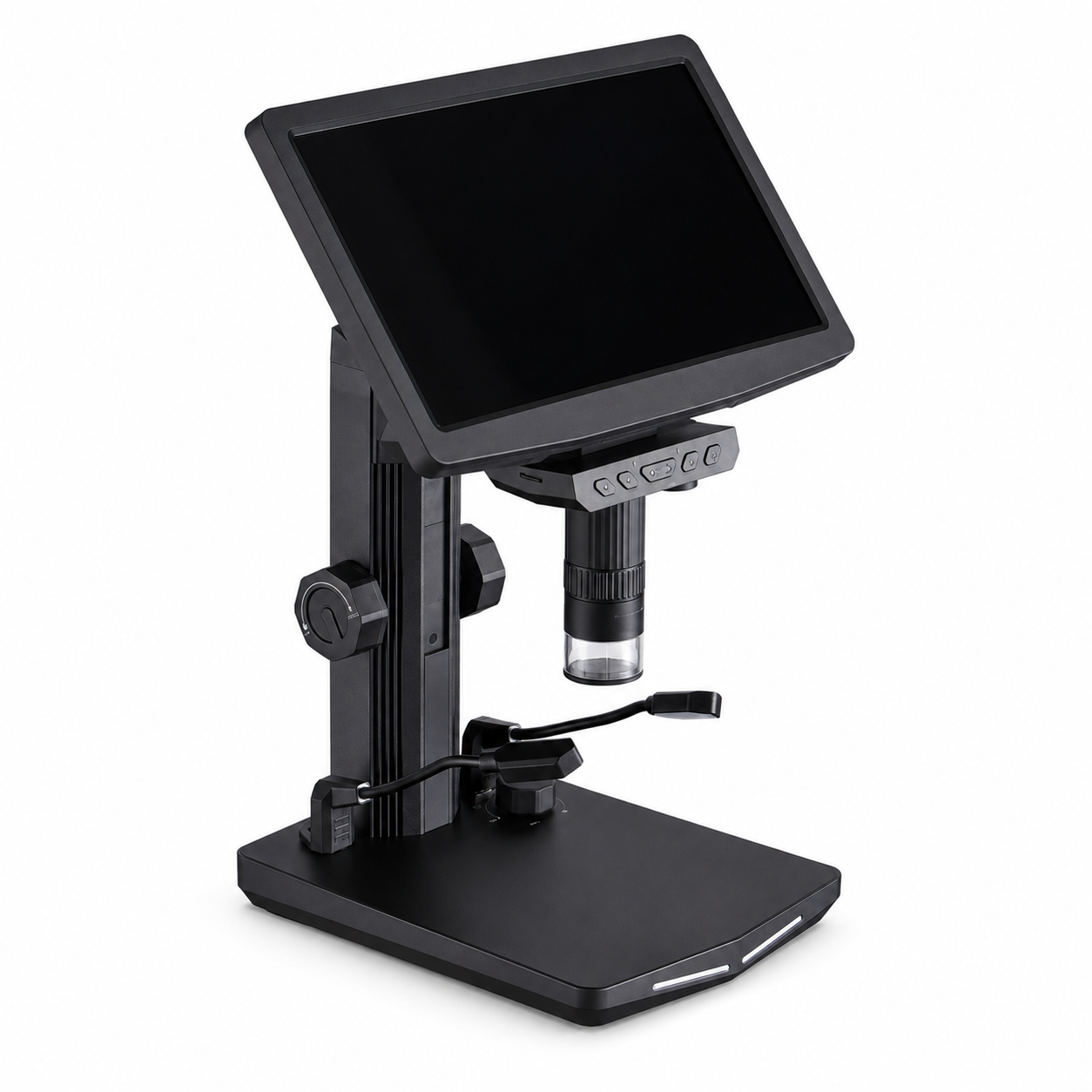

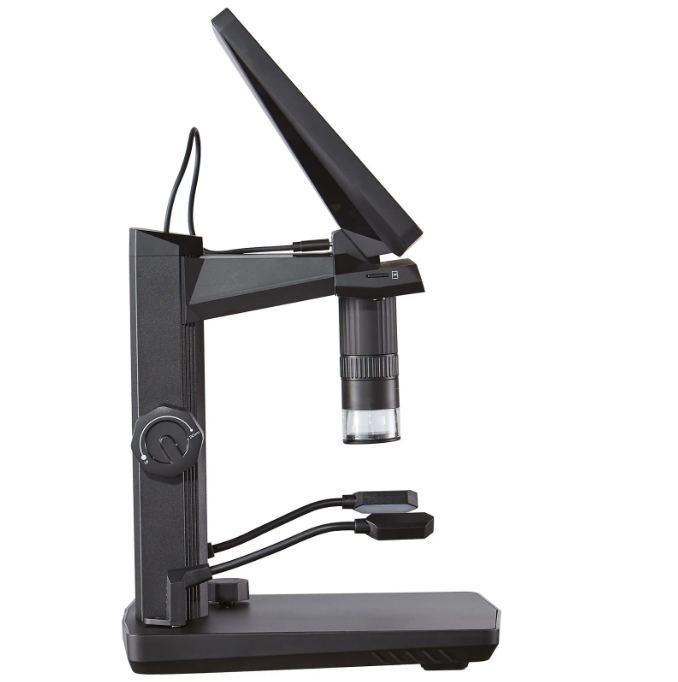

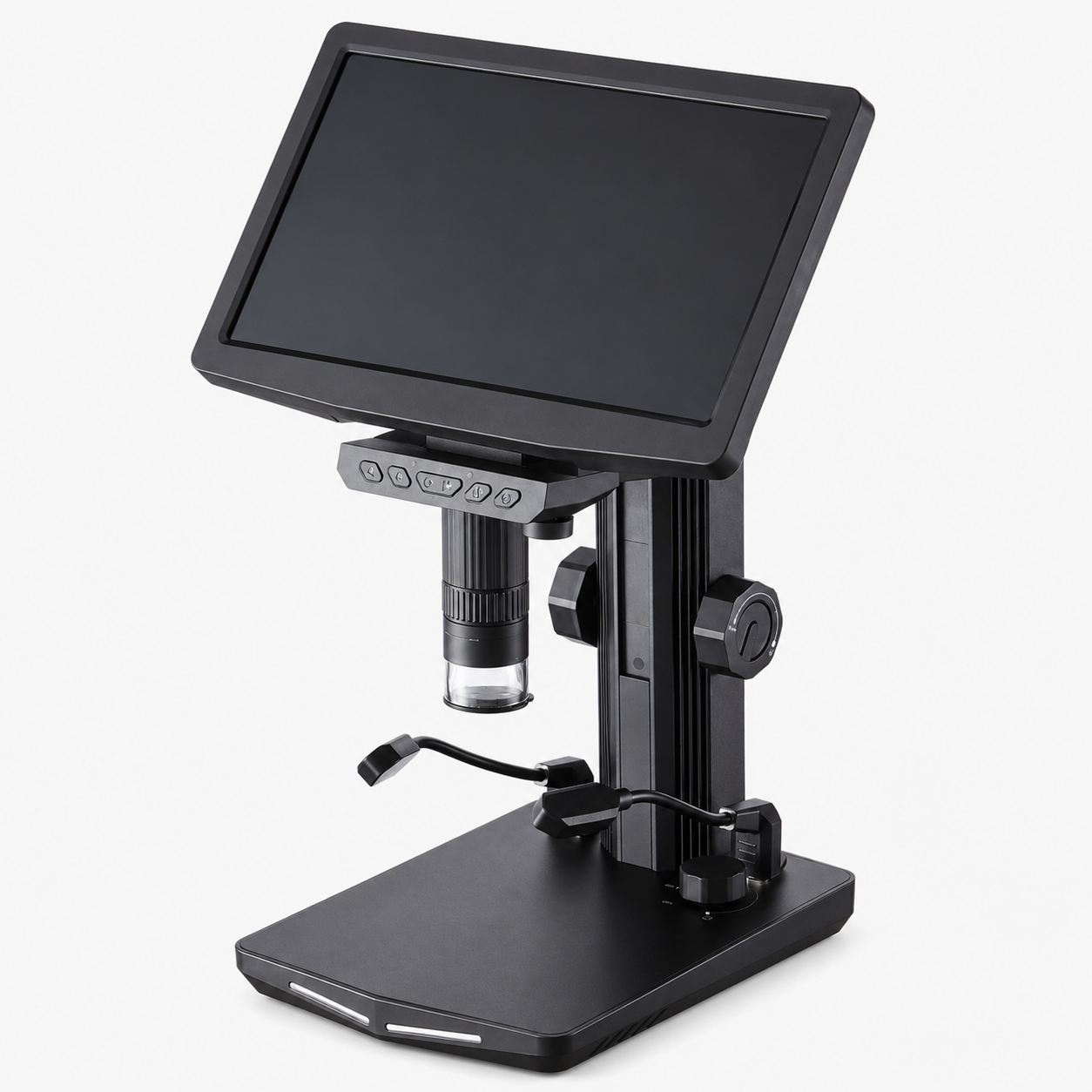

7" HDMI LCD Digital Microscope

Professional-grade 10X–1200X magnification digital inspection microscope featuring a high-brightness 7-inch IPS screen, dual flexible side fill lights, and real-time PC/TV HDMI output. Designed for micro-soldering, coin grading, PCB repair, quality control, and lab inspection.

7" HD IPS Screen 10X – 1200X Zoom 1080P HD Imaging HDMI & USB Dual Output Dual Gooseneck Side Lights
Key Performance Features
🖥️

7" High-Brightness IPS Screen

1024x600 HD resolution display with 500 cd/m² brightness for crystal-clear image clarity from wide angles, minimizing strain during extended inspection sessions.

🔍

10X - 1200X Magnification

Continuous zoom capability allows precise micro-level inspection from full coin views down to fine micro-solder joints and PCB traces.

💻

PC & HDMI Big-Screen Output

Direct plug-and-play USB connection for Windows and macOS, plus zero-latency HDMI display output to external monitors or TVs for group collaboration.

📸

HD Photo & Video Capture

Captures 1920x1080 JPG photos and smooth 1080P 30FPS MP4 videos. Easily store inspection logs on the MicroSD memory card.

💡

Dual Gooseneck Side Lights

Features 8 surrounding lens LEDs paired with 2 flexible, adjustable gooseneck side lights to eliminate glare, reduce shadows, and reveal complex 3D surface textures.

🔋

Extended Stand & Rechargeable Battery

Gear-driven adjustment mechanism offers extended height clearance to view entire coins (up to 26.5mm diameter). Powered via USB or internal lithium battery for portable field use.

Target Applications
Electronics & PCB Repair SMD micro-soldering, circuit line inspection, joint defect checking
Coin Collecting & Numismatics Full-coin observation, mint mark verification, die defect analysis
Jewelry & Gemology Hallmark inspection, stone setting security check, surface flaw evaluation
Industrial Quality Control Precision machining checks, material fatigue analysis, surface testing
Technical Specifications
Display & Optical Performance
Screen Type & Size 7-inch IPS Panel
Resolution & Brightness 1024 x 600 Pixels | 500 cd/m²
Magnification Range 10X – 1200X Continuous
Focusing Range 0 – 50 mm (Manual Focus Dial)
Observable Height 0 – 97 mm
Imaging & Data Storage
Camera Sensor 2.0 MP CMOS Sensor
Photo Format JPG (1920 x 1080)
Video Format MP4 (1080P @ 30 FPS)
Storage MicroSD Card Slot (Up to 32GB)
Compatibility & Output
Interfaces Micro-USB / HDMI
OS Support Windows 7+ / macOS 10.5+
External Display Real-time HDMI Output to TV/Monitor
Power, Mechanical & Operating Environment
Illumination 8 Lens LEDs + 2 Adjustable Gooseneck Side Lights
Stand Type Gear-Driven Height Adjustable Stand
Power Supply DC 5V, 1A (Built-in Lithium Battery + USB)
Operating Temp. -10°C ~ 55°C (30% – 85% RH)
Dimensions 245 x 160 x 330 mm
Net Weight 1.28 kg

Package Includes

1x 7" Digital Microscope (Model W7-A)
1x Gear-Driven Height Adjustable Stand
2x Flexible Gooseneck Side Lights
1x USB Data Cable
1x HDMI Cable
Assembly Tooling Set (Industrial Hex Wrench & Screws)
1x Wireless Remote Control
1x User Manual
