M202 2.0" Handheld Digital Microscope with White & Violet LED Light
M202 2.0" Handheld Digital Microscope with White & Violet LED Light
Couldn't load pickup availability

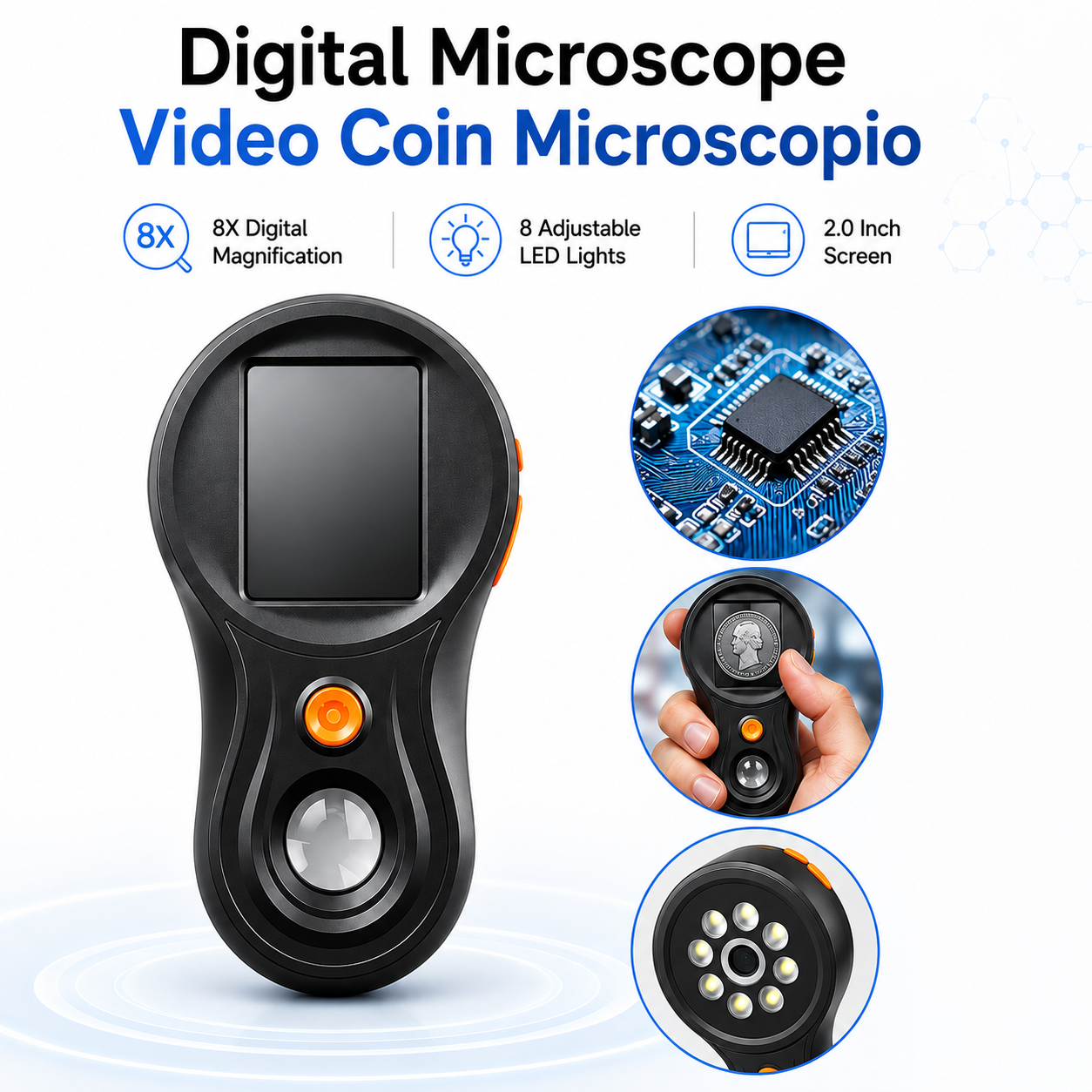

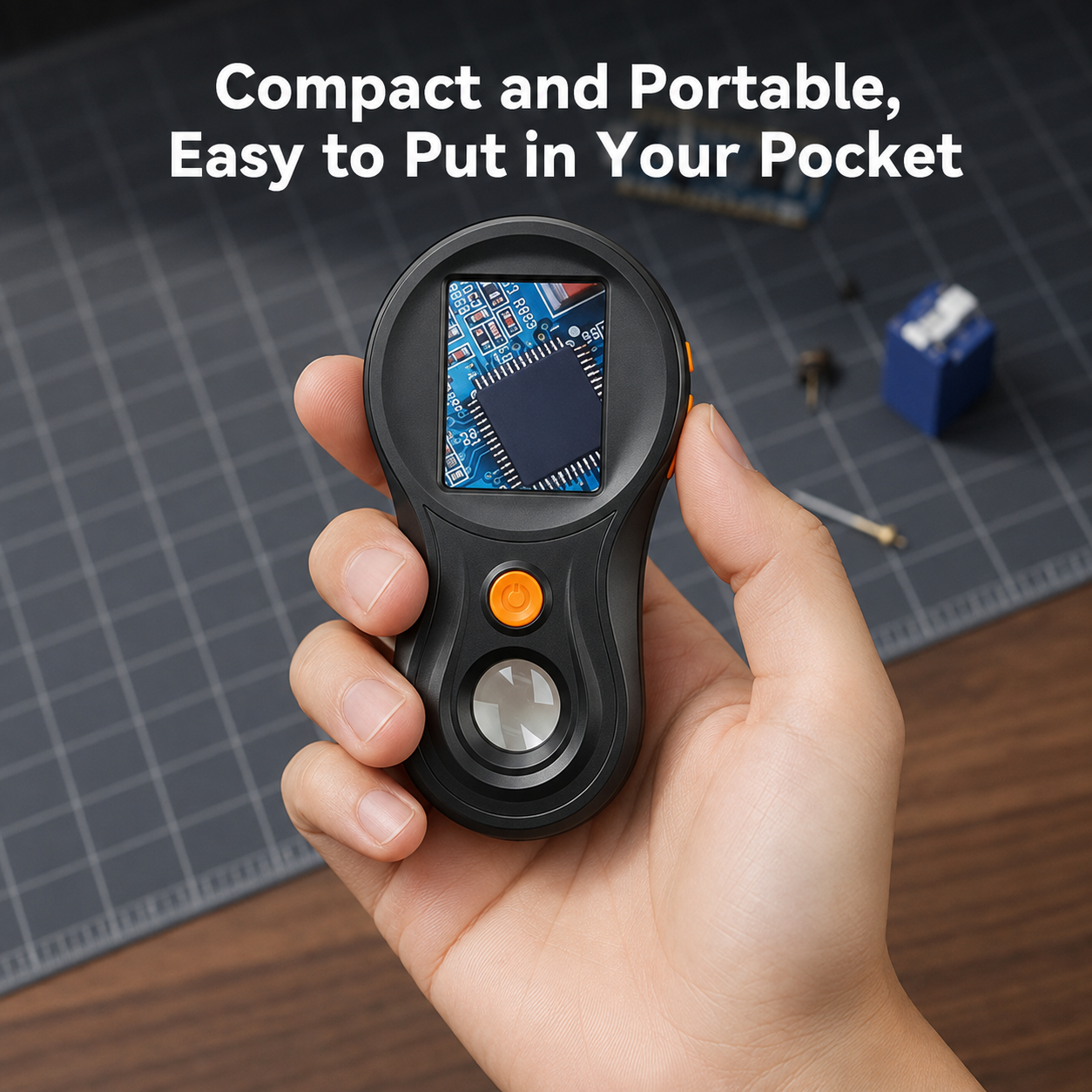

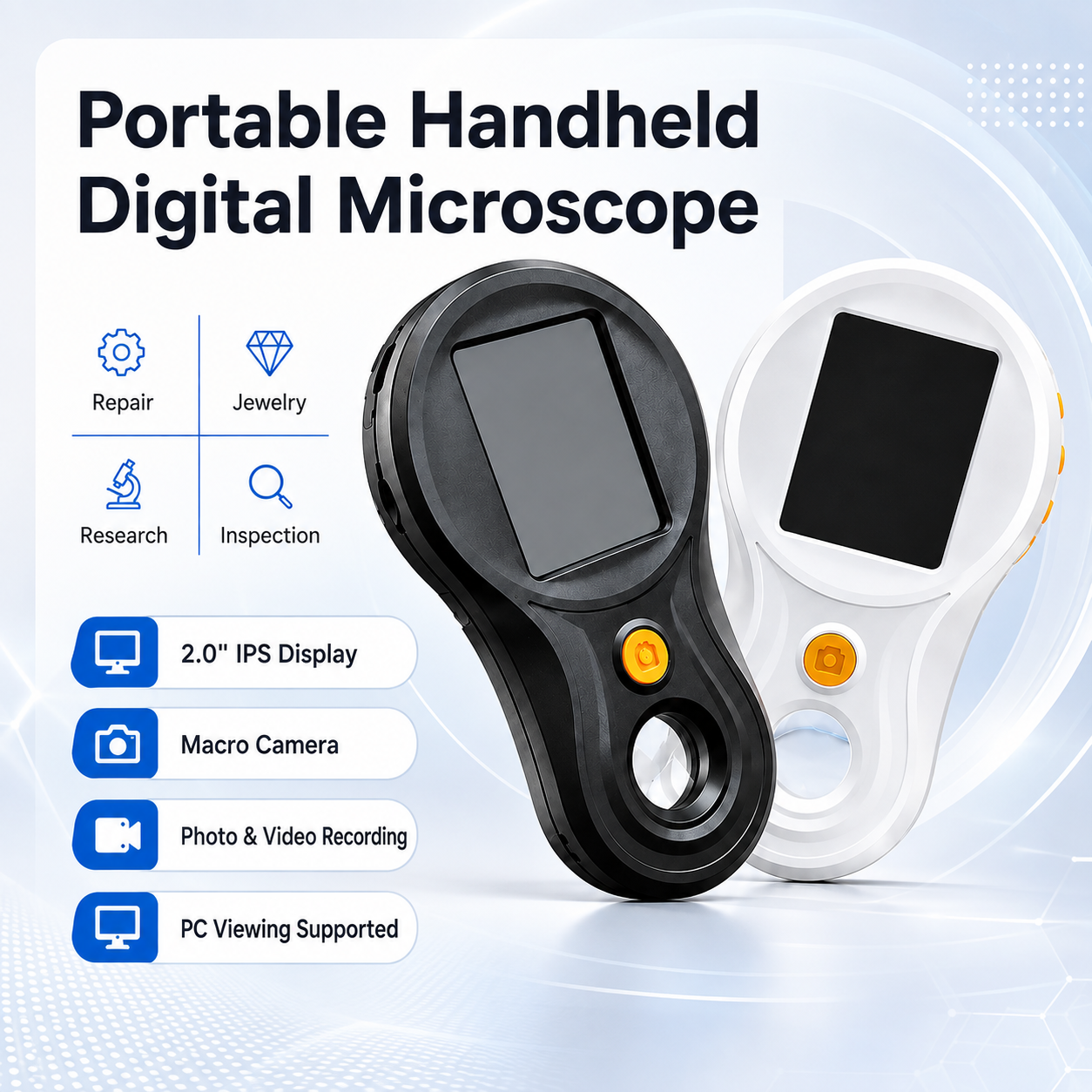

M202 Handheld Digital Microscope
A compact digital microscope with a 2.0-inch IPS display, 8× digital zoom, and switchable white and violet lighting. Suitable for circuit board inspection, coin observation, quality control, education, and general surface examination.

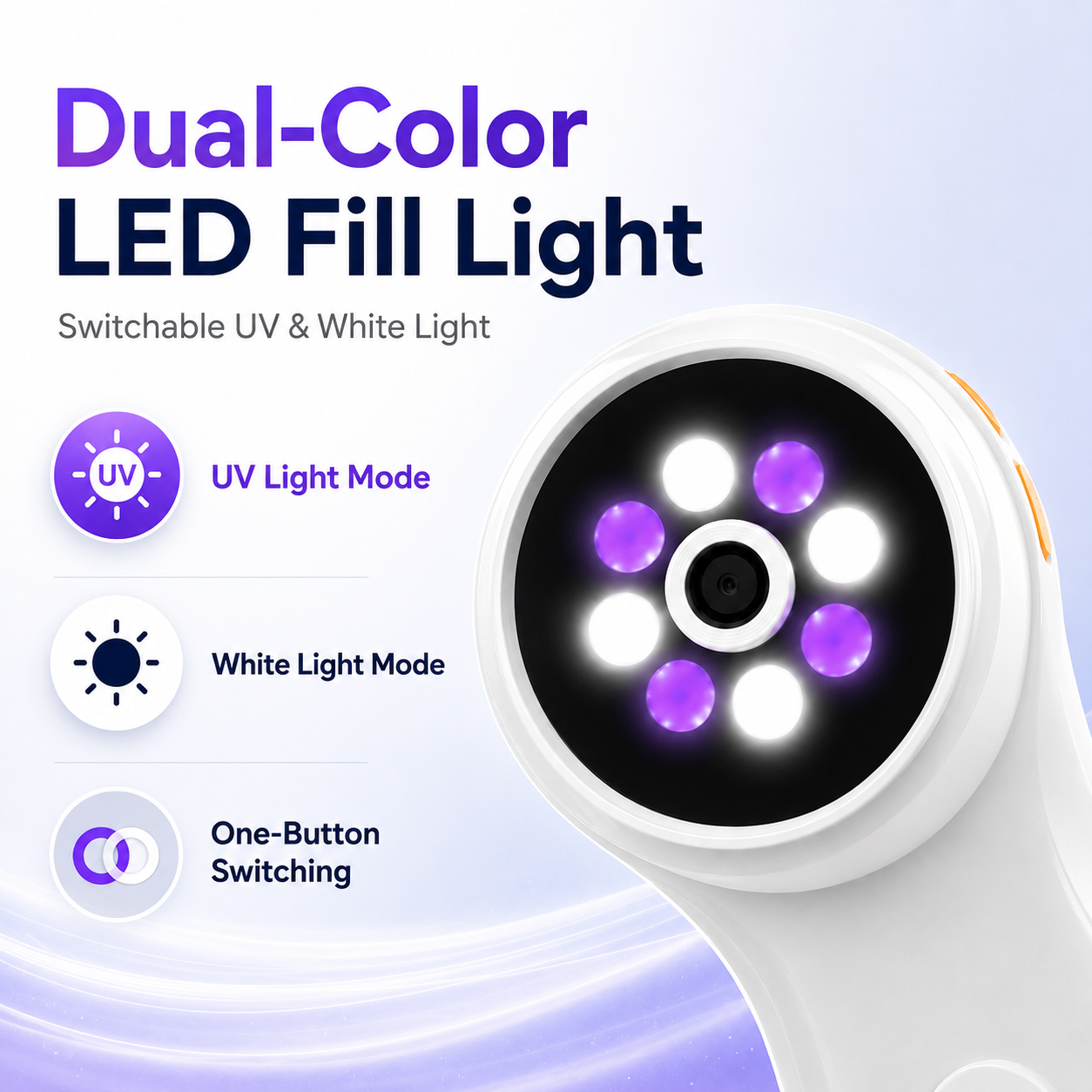

Switchable White and Violet Lighting
After powering on the microscope, short-press the power button to switch between the two lighting modes.
Provides natural illumination for PCB inspection, surface examination, repair work, and general quality-control applications.
Suitable for observing fluorescent markings, security features, special coatings, banknotes, and other fluorescence-responsive materials.

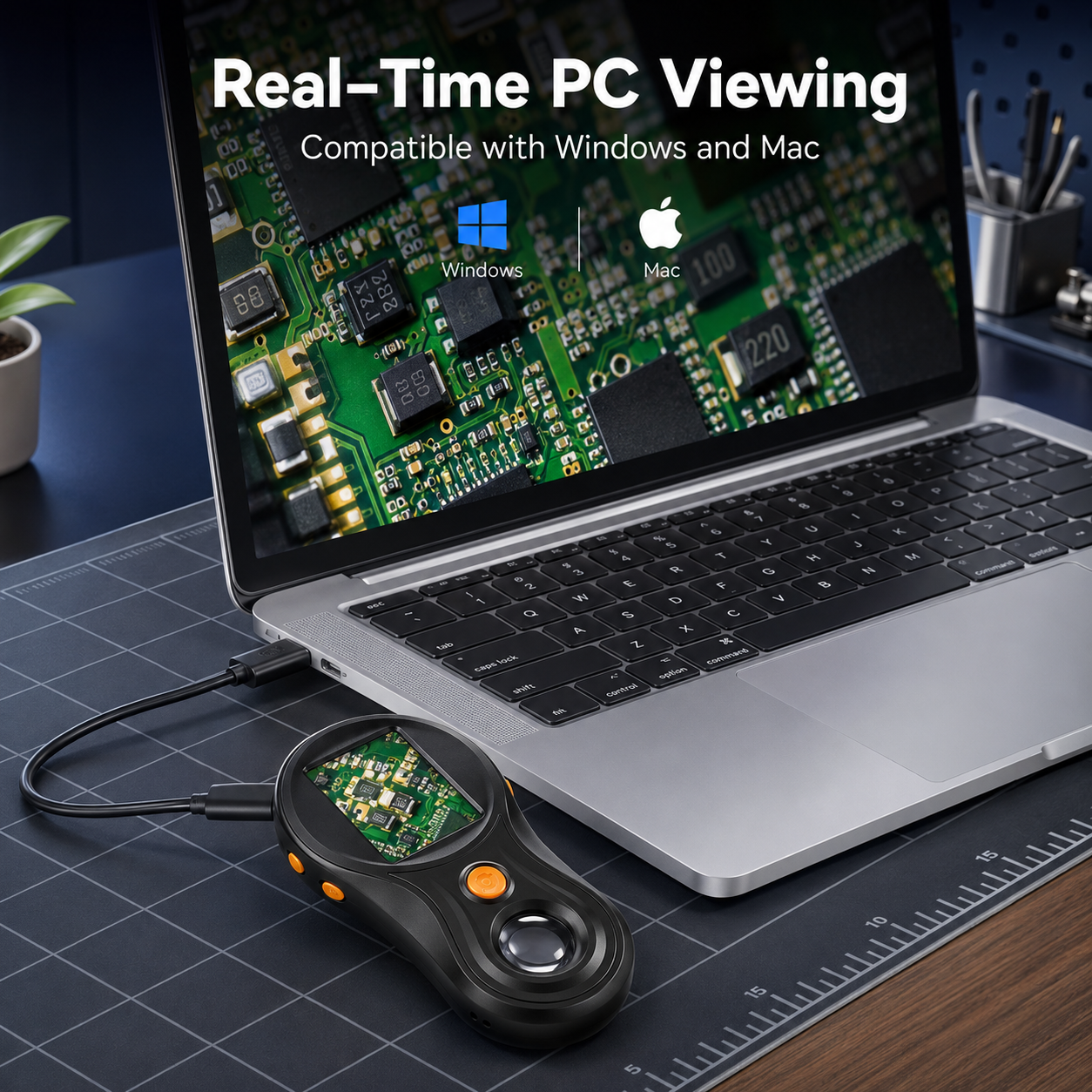

USB Real-Time PC Viewing
Connect the microscope to a Windows or macOS computer through the Type-C interface for real-time viewing on a larger screen.
| Display and Imaging | |
| Display | 2.0-inch HD IPS screen |
|---|---|
| Image Sensor | 1.0 MP, 1/4-inch CMOS sensor |
| Digital Zoom | Up to 8× |
| Lens | 4P lens with IR filter |
| Aperture | F4.5 |
| Viewing Angle | 20° |
| White Balance | Automatic |
| Exposure | Automatic |
| Illumination | 8 LEDs with switchable white and violet light modes |
| Power and Connectivity | |
| Interface | Type-C, 5V/1A |
| PC Viewing | USB real-time viewing on Windows and macOS |
| Battery | 450 mAh, 3.7V rechargeable lithium-polymer battery |
| Operating Time | Approximately 2 hours |
| Charging Time | Approximately 2 hours |
| Power Consumption | 220 mA, 0.75 W |
| Operating Environment and Languages | |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 30%–85% RH |
| Supported Languages | English, Simplified Chinese, Traditional Chinese, Japanese, Korean, Russian, French, German, Czech, Portuguese, Italian, and Arabic |
