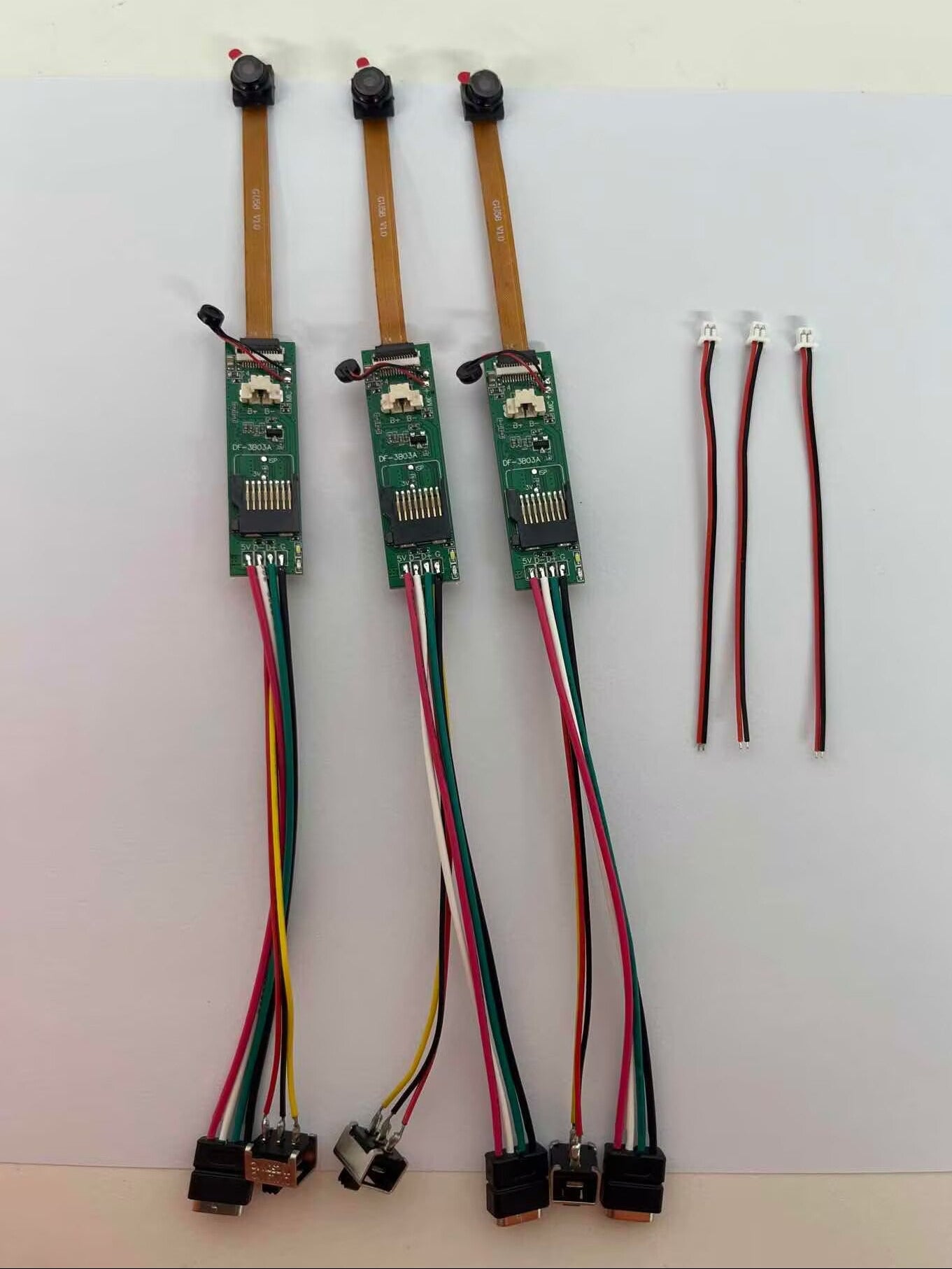

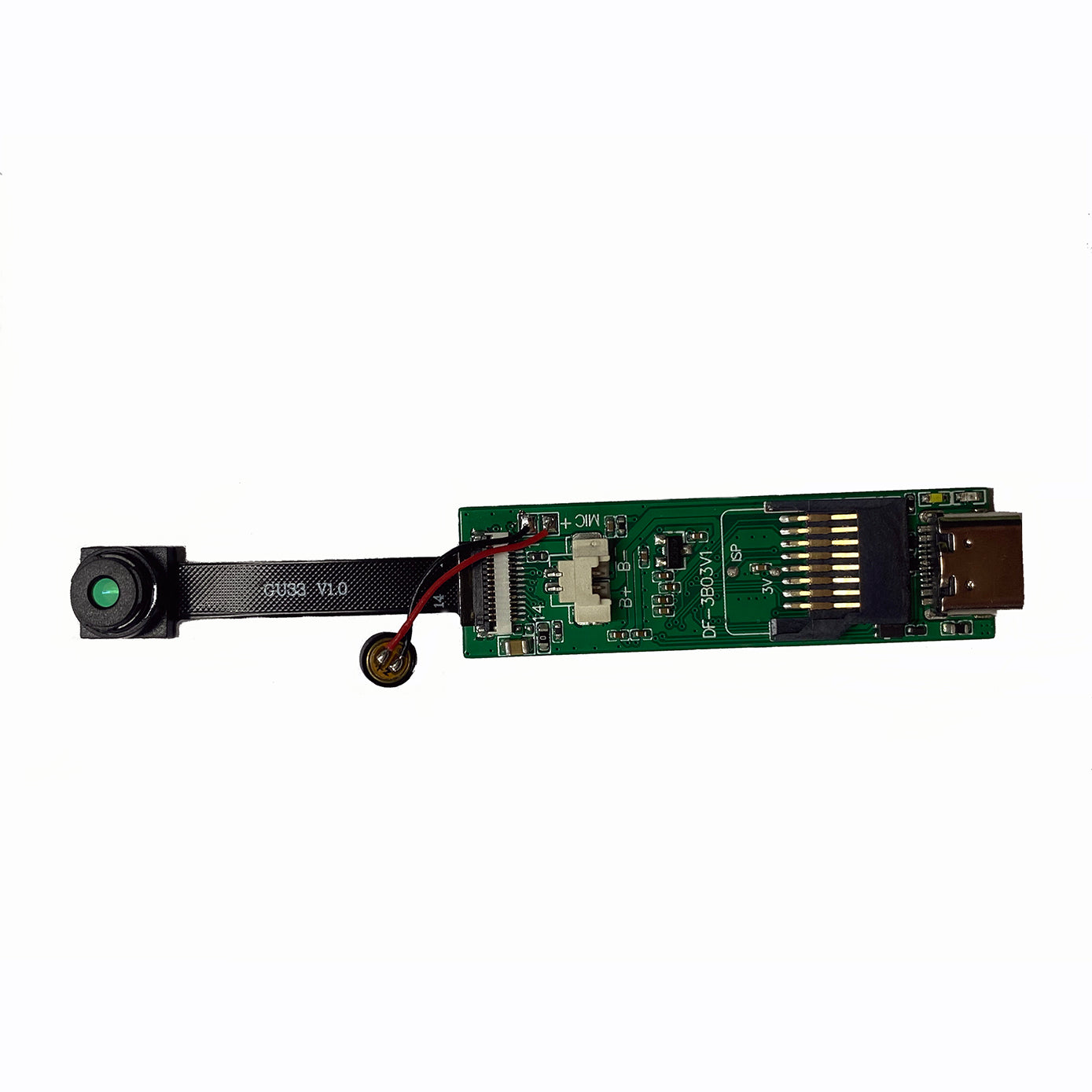

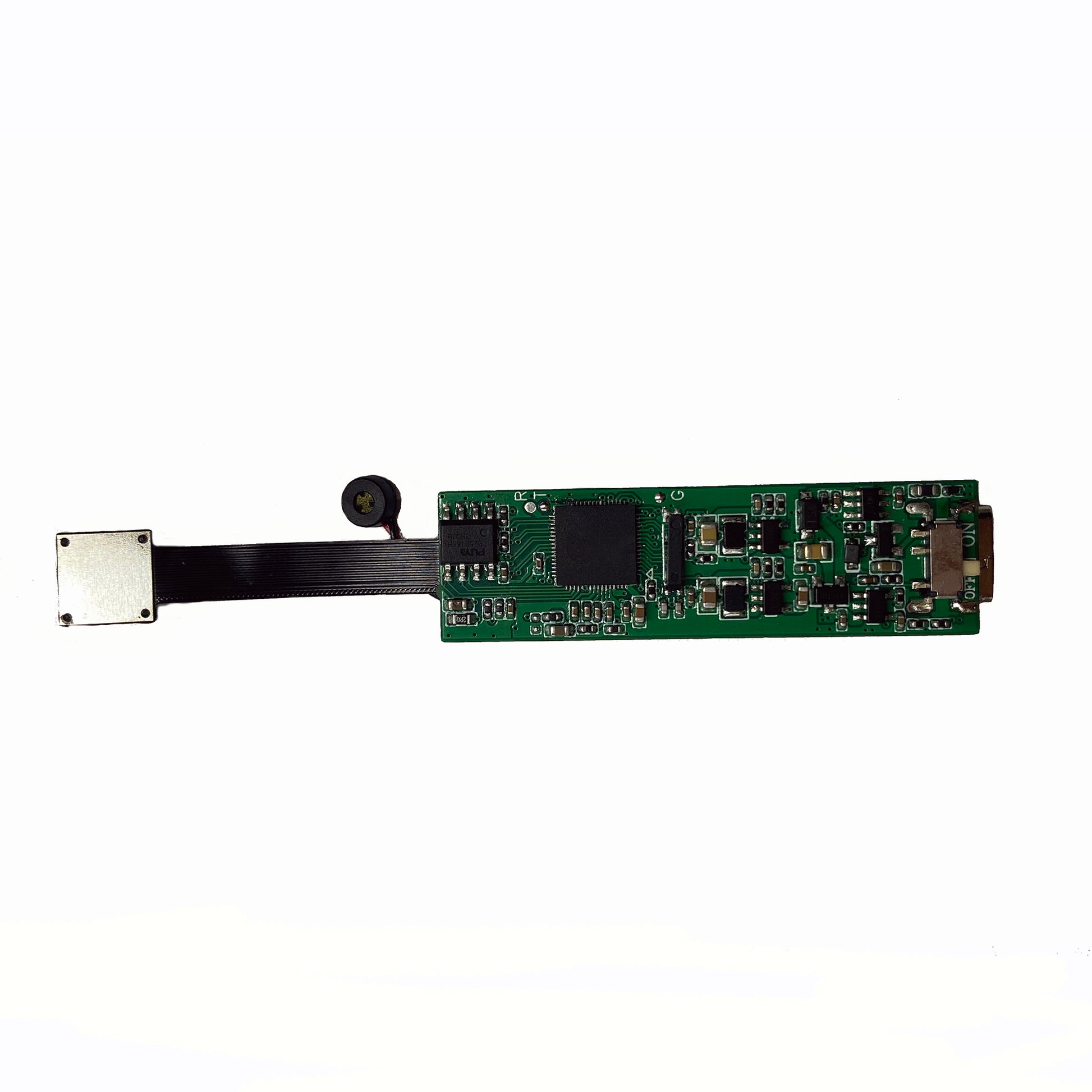

Mini USB Camera Module 1080P with DVR Recording & micro SD Storage
Mini USB Camera Module 1080P with DVR Recording & micro SD Storage
Couldn't load pickup availability
🌀 Product Description
Small size. Big clarity. Smart detection.
This 1080p camera module automatically starts recording on power-on and stops recording on power-off.
It supports motion detection recording and can be powered by either a 3.7V Li-ion battery (via 2-pin 1.25 mm connector) or USB DC 5V.
Featuring a USB 2.0 interface with UVC support, the USB port provides power input, basic battery charging, and data access.
Video can be recorded locally to a micro SD card at up to 1080p @ 30 fps, with image processing and video compression handled by the main video processing SoC with integrated ISP.
⚙️ Technical Specs
| Spec | Detail |
|---|---|
| Resolution | 1920×1080 (Full HD) |
| Interface | USB 3.0 Type C for Charging and Data |
| Lens Angle | 60~70 degrees (optional wide-angle) |
| Image Sensor | 1/2.9'' 2Mega CMOS Image Sensor |
| Microphone | Extended Microphone 20MM wire |
| Recording modes | Normal loop recording Motion Detection recording |
| Video Format | MOV |
| Power Supply | 3.7V lithium battery or USB DC 5.0V |
| PCBA board size | 47.0MM x 13.5MM x 1.0MM（Length x Width x Thickness） |
| FPC Model | GU33 V1.0, the camera cable length is 25MM |
| Storage type | Support up to 256GB Micro SD card |
| Operating Voltage | 3.5V~5.0V DC |
📩 Need it customized?
We support OEM branding, lens modification, cable customization, and system integration.
